Description

Highlights:

• Supports 2 SIP profiles and 8 FXS ports
• Strong AES encryption with security certificate per unit
• Automated & secure provisioning options using TR069
• 3-way voice conferencing per port
• Exceptional voice quality with wide-band HD codec
• Supports T.38 Fax for reliable Fax-over-IP
• Supports dual Gigabit network ports
• High performance NAT router

Datasheet:

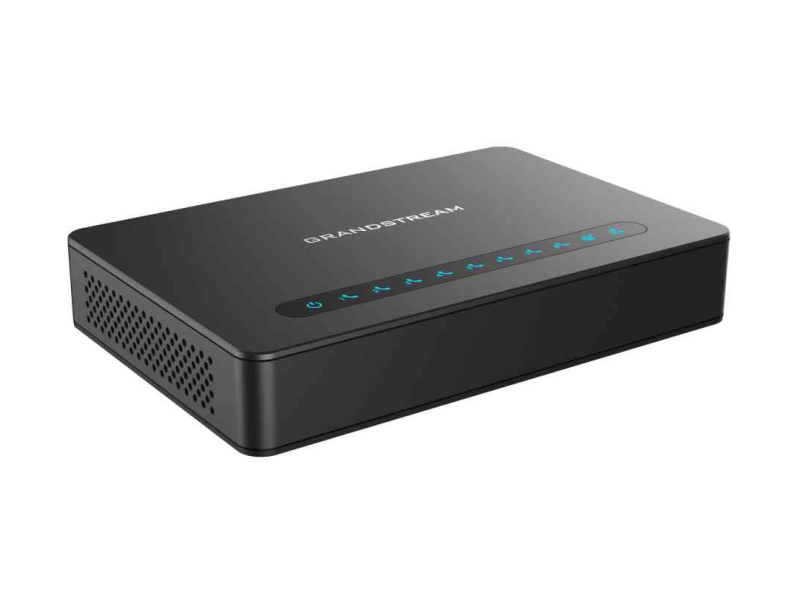

HT818
The HT818 is a powerful 8-port VoIP gateway with 8 FXS ports and an integrated Gigabit NAT router. Built for users looking for a strong analog-to-VoIP converter, it features Grandstream?s market-leading SIP ATA/gateway technology with millions of units successfully deployed worldwide. This powerful gateway carries exceptional voice quality in various application environments, strong encryption with unique security certificate per unit, automated provisioning for volume deployment and device management, and outstanding network performance for enterprise use.

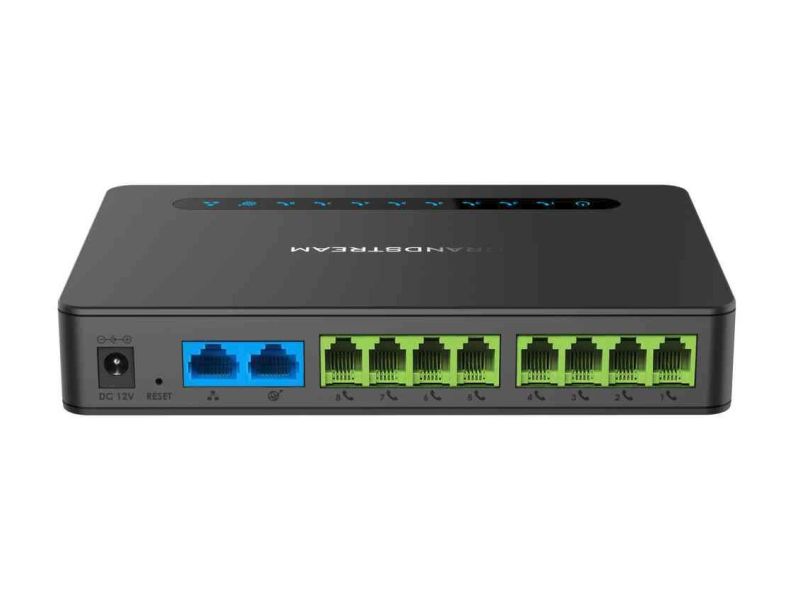

InterfacesTelephone Interfaces: Eight (8) RJ11 FXS ports | Network Interface: Two (2) 10/100/1000Mbps RJ45 ports | LED Indicators: POWER, LAN, WAN, PHONE1, PHONE2, PHONE3, PHONE4, PHONE5, PHONE6, PHONE7, PHONE8 | Factory Reset ButtonVoice, Fax, ModemCaller ID display or block | call waiting | flash | blind or attended transfer | forward | hold | do not disturb | 3-way conferenceVoice CodecsG.711 with Annex I (PLC) and Annex II (VAD/CNG) | G.723.1, G.729A/B, G.726, iLBC | OPUS | dynamic jitter buffer | advanced line echo cancellationFax over IPT.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-throughShort/Long Haul Ring Load2 REN, up to 1km on 24AWG lineCaller IDBellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CIDDisconnect MethodsBusy Tone, Polarity Reversal/Wink, Loop CurrentNetwork ProtocolsTCP/IP/UDP | RTP/RTCP | HTTP/HTTPS | ARP/RARP | ICMP | DNS | DHCP | NTP | TFTP | SSH | STUN | SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069QoSLayer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLSDTMF MethodIn-audio, RFC2833 and/or SIP INFOProvisioning and ControlHTTP | HTTPS | SSH | TFTP | TR-069 | secure and automated provisioning using AES encryption | syslogSecuritySRTP | TLS/SIPS/HTTPS | Syslog support, SSH, remote management using web browser Multi-languageUniversal Power Supply: Input: 100-240VAC, 50-60Hz, Output: 12V/1.5A | Environmental: Operational: 32F ? 104F or 0C ? 40C, Storage: 14F ? 140F or -10C ? 60C, Humidity: 10 ? 90 Percent Non-condensing
