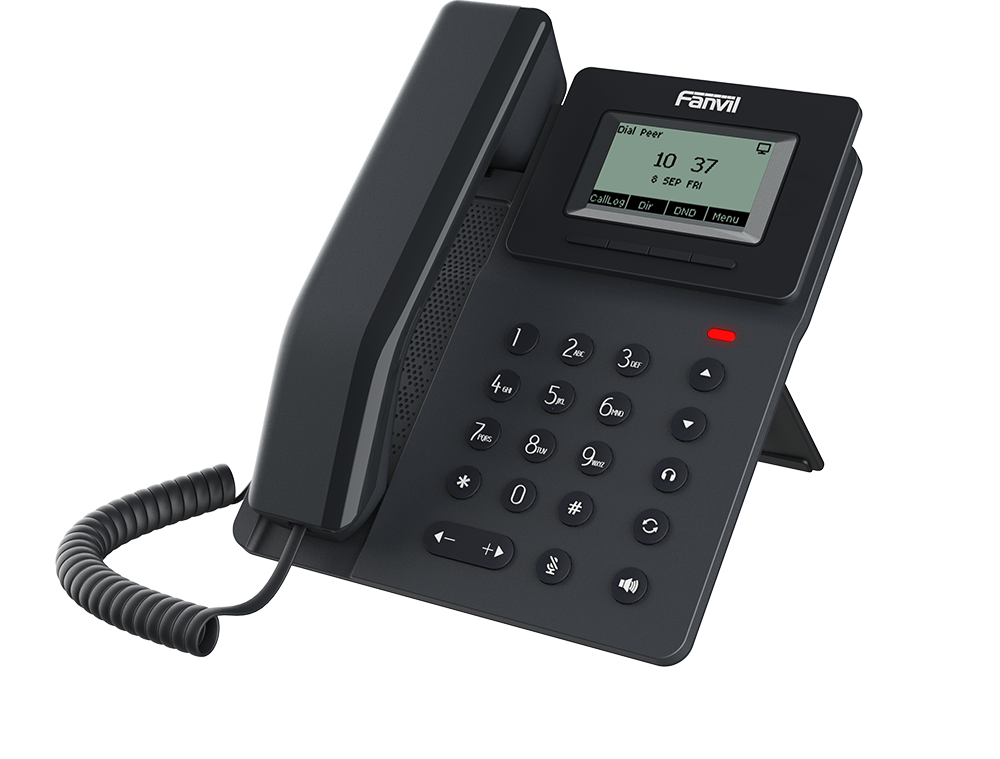

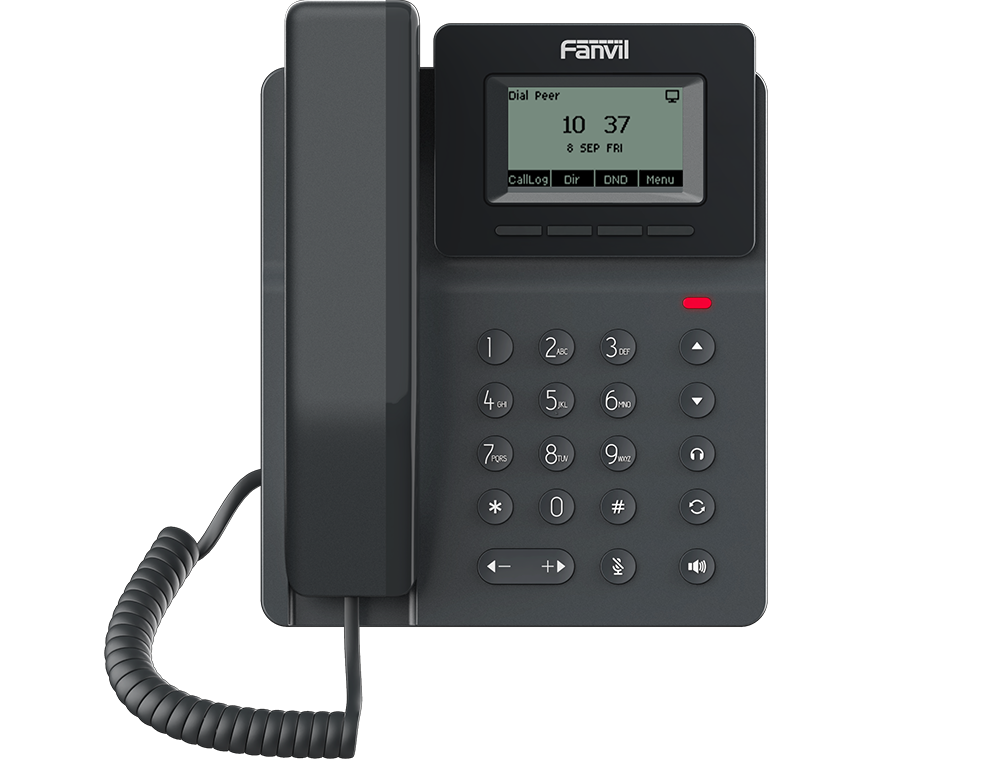

Fanvil V50P – Basic Level IP Phone

Stylish, high-performance entry-level IP phone with a 2.3-inch 132x64 pixel screen, 2 SIP lines, 6-way audio conference, PoE support and HD voice.

Highlights

• 2.3-inch 132x64 pixel dot-matrix screen
• HD audio (G.722, Opus)
• 6-way audio conference
• Fast Ethernet 10/100Mbps, PoE
• Compatible with EHS headsets
• Desktop and wall-mount installation

Phone Functions

• Local/Remote Phonebook (up to 1000 entries)
• Call logs, Blocked/Allowed lists
• Voice message waiting indication (VMWI)
• Programmable soft keys
• Time plan for auto reboot, forward, upgrade
• Custom ringtones, XML browser, Action URL

Audio

• HD handset & speaker
• Wideband: G.722, Opus
• Narrowband: G.711a/u, G.729, iLBC
• Full-duplex AEC, AGC, NR, VAD, PLC

Network & Protocols

• 10/100 Mbps Ethernet (dual port)
• IPv4/IPv6, VLAN, QoS, LLDP
• VPN: L2TP / OpenVPN
• SIP v1/v2, TLS, SRTP, STUN, TR-069

Deployment & Management

• Auto-provisioning (FTP/TFTP/HTTP/HTTPS/DHCP Option 66)
• Web management portal
• Import/export config & phonebook
• Syslog, screenshot, firmware upgrade

Physical Specifications

• LCD: 132x64 pixel dot-matrix
• 24-key keypad
• Ports: 2×RJ45 (LAN/PC), 2×RJ9 (Handset/Headset)
• Power: DC 5V/1A or PoE (IEEE 802.3af)
• Dimensions (Desk stand): 173×185×170 mm
• Weight per CTN (
